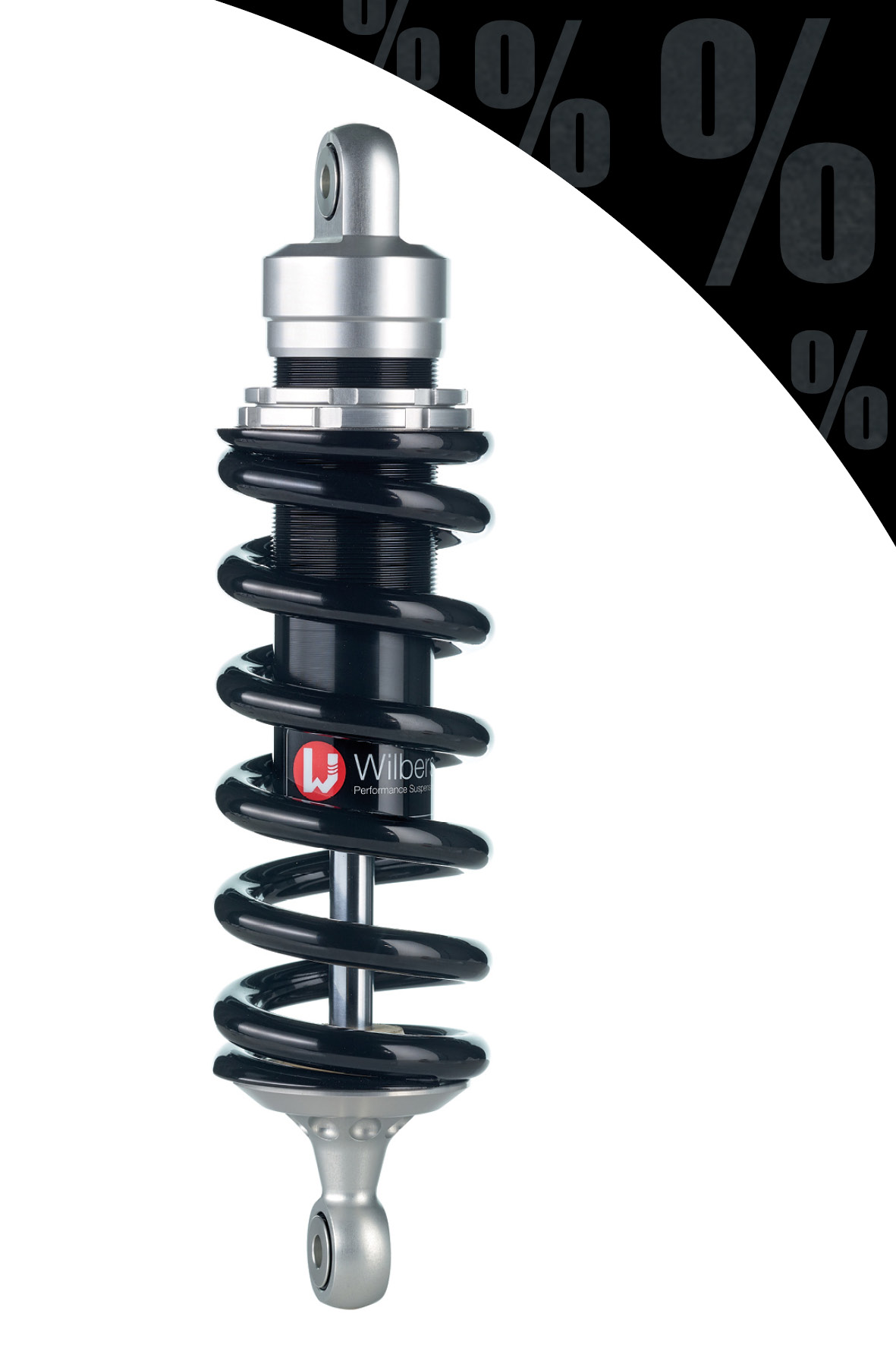

refurbished shock absorber type 540 Road
Art. No.:
S540-0635-00
Ohne_Titel_1

Our
Wilbers-PA
solution maybe is the most comfortable way to adjust the spring preload. Using a hand knob that comes with a bracket specified for your motorcycle, you can easily adjust the riding level to match additional passenger and/or loading situations. The adjustment range is 10 mm.

The X-PA offers you the option to regulate the spring preload and therewith the vehicle level by the included box spanner in a breath. The purely mechanical adjustment mechanism is very light and, due to its robustness, best suited for enormous loads. The adjustment range is 15 mm.

The
ZF-PA is a hydraulic spring tensioner that is directly integrated on the shock absorber. The advantage is that you do not have to mount an external hand knob to the vehicle. Nowadays especially current motorcycle models rarely offer space for a separate had wheel. Easily reachable and adjustable without much force, this preload option can be tuned for up to 15 mm.

The
E-PA is an electrohydraulic spring preload. This system is exclusive to our WESA-X shock absorbers. Using the control unit of the WESA-X system, you can adjust the seating level at the push of a button to different loading situations in 5 steps.
Ohne_Titel_1

With
the Wilbers
ride-height-adjustment the length of the shock absorber can be modified over a thread located at the lower shock mount for +/-5mm. Normally this is possible while the shock absorber is installed.
Depending on the type of the motorcycle, the seating height can be adjusted for up to +/-15mm. This is for example useful on the racetrack to influence the caster and therewith the steering behavior of the motorcycle.
A perfect suspension for your driving experience and your safety. Our refurbished suspensions are also optimally tuned to you and your needs after purchase, thus guaranteeing the difference between a good and a great driving experience.
Whether you're driving alone or with a passenger, whether you have a lot or little luggage, whether you're on the racetrack, on the road, or off-roadâthe items from our refurbished product range have the same high quality as our regular items. They were usually only used for media production, for example, for product photography, or as display pieces, and leave our premises freshly serviced.
They are technically flawless and show only minimal signs of wear.
Refurbished items are only available to end users residing in Germany!
spring preload adjustable. Rear
